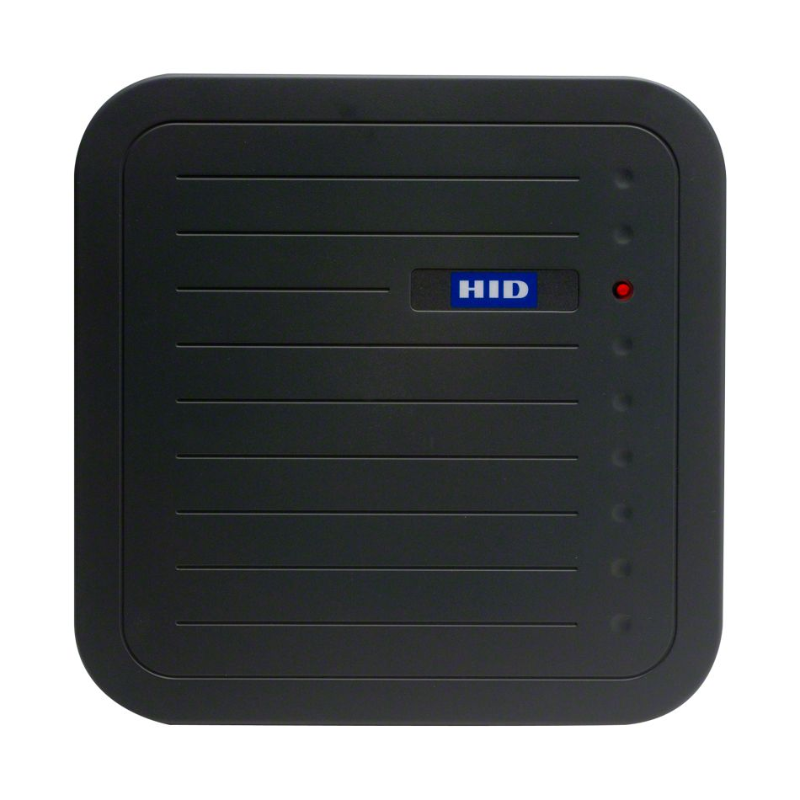

MaxiProx 125kHZ Long Range Proximity Reader (Wiegand Output)

HID's MaxiProx&;reg; Reader is ideal for installations incorporating parking control and long read range applications. The MaxiProx reader packages all the electronics in one rugged, attractive and easy-to-install housing. Long read range distance (up to 6 with ProxPass). Auto tune allows read range to be maintained within four inches of metal. "Parking hold" feature ensures accurate detection of vehicles in parking lanes.

• Long read range distance (up to 6 with ProxPass)
• "Parking hold" feature allows connection to a loop detector for detection of vehicles in parking lanes
• Multicolour LED with internal or host control of the LED and beeper
• Two MaxiProx units can operate one meter apart for "HI-LO" (truck and car) installations

• Dimensions: 30.0 x 30.0 x 2.54 cm
• Input Voltage: 12 or 24V DC
• Current (DC): Average: 200 mA (12V DC); 260 (24V DC), Peak: 700mA (12V DC); 1.2A (24V DC)

Datasheets

• HID Prox Reader Comparison Chart.pdf
• HID-5375 Datasheet.pdf
