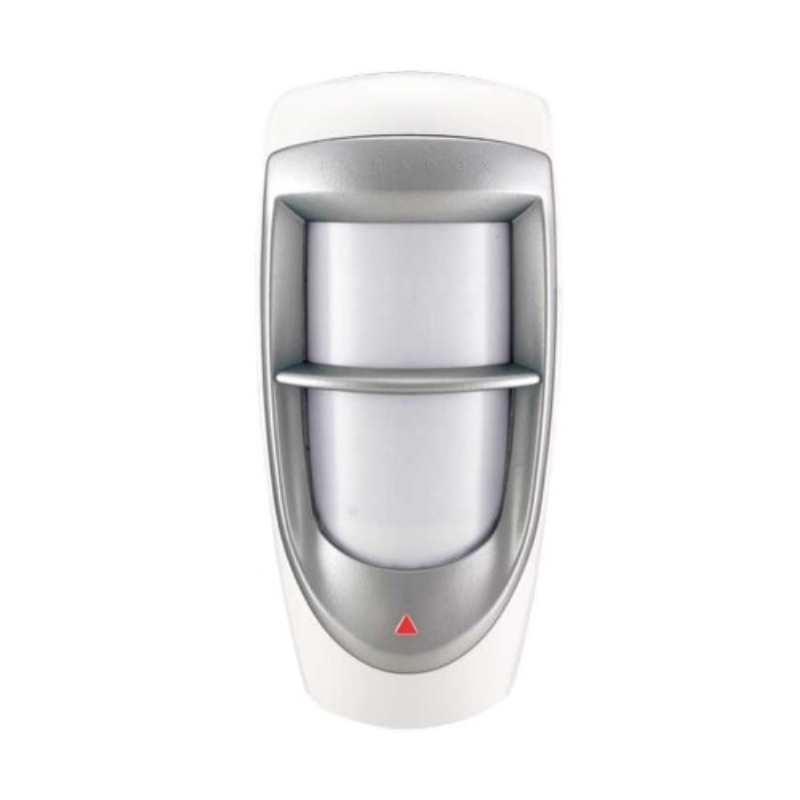

Paradox Wireless Outdoor Quad PIR, EVO Bus & Relay, Pet Immune with Bracket, IP54

\pThe Outdoor Digital Dual-Optic PIR is a dual-element sensor which provides pet immunity for animals weighing up to 40kg, such as large-breed dogs, and resistance against heavy weather, impacts and UV. Using horizontal and vertical curtain beams, it can protect corridors or vertical surfaces such as walls and balcony doors.

• Impact and temperature resistant casing
• Operates at -35deg C to +50deg C
• Casing lined with an injected rubber gasket
• UV protected lens and Dual Optical Filtering System
• Multi-level sensitivity adjustment
• Dual optics (2 dual opposed element sensors)
• Digital Dual Opposed Detection
• Typical wireless range with the MG6250: 35m
• Typical wireless range with MG5050 and RTX3: 70m
• Alive software (alarm LED continues to display when PIR is in energy save mode without compromising battery life)
• 3-minute energy save mode after two detections within a five-minute period

• Wireless frequency: 433MHz

Installation Documents

• PDX-PMD85 Installation Guide.pdf
• PDX-SB85 Installation Guide.pdf

Knowledge Centre

• Paradox Battery Guide.pdf
